中科聚峰搅拌车轴承设计工艺介绍!

 来源:http://www.jufengjiaobanji.com 日期:2020-05-19 发布人:zhongke
  目前市场上对混凝土搅拌机的需求量很大,很多人购买。制作过程也非常。你对混合器的轴承生产过程了解多少?
  At present, the market demand for concrete mixer is very large, many people buy it. The production process is also very professional. What do you know about the bearing production process of the mixer?
  搅拌机轴承设计和生产过程中,必须考虑到轴承热平衡控制温度上升,由于轴承摩擦条件下,功耗,由于内部摩擦和润滑液进入热引起的温度升高,润滑油粘度,差距将会改变,将软化巴氏合金轴承,严重时产生“燃烧”持有轴事故,搅拌机改善轴承维修和装配质量,确保光滑,没有斑点的轴承,定位凸点完好无损,数量的反弹0.5 - 1.5毫米,保证装配后的轴承借助自己的轴承孔弹性接合紧密,复制轴承位置的上下两块轴承轴承座位飞机高于两端应30 - 50微米,更高的数量可以确保按规定扭矩拧紧轴承盖螺栓轴承和轴承后座位密切协调,产生足够的摩擦力自锁,轴承不松散,良好的散热效果,防止轴承烧蚀和磨损,轴承工作面不能刮接触模式匹配法做测量达到75% - 85%,不应刮使轴承和轴配合间隙的直径。
  In the design and production process of mixer bearing, the temperature rise of bearing thermal balance control must be taken into account. Due to the power consumption under the condition of bearing friction, the temperature rise caused by internal friction and heat entering of lubricating fluid, the viscosity and gap of lubricating oil will be changed, which will soften Babbitt alloy bearing and cause shaft holding accident of "burning" in serious cases. The mixer will improve the quality of bearing maintenance and assembly to ensure smoothness, No spot bearing, locating convex point intact, quantity rebound zero point five - One point five Mm, to ensure that the assembled bearings are elastically connected with their own bearing holes. The upper and lower bearing seats of the duplicated bearing positions should be 30-50 microns higher than the two ends of the aircraft. The higher number can ensure that the bearing cover bolts are tightened according to the specified torque and the bearing rear seats are closely coordinated, It can produce enough friction force and self-locking, the bearing is not loose and has good heat dissipation effect, so as to prevent the bearing from ablation and wear. The working surface of the bearing can not be scraped by the contact mode matching method for measurement up to 75% - 85%, and the diameter of the matching clearance between the bearing and the shaft should not be scraped.

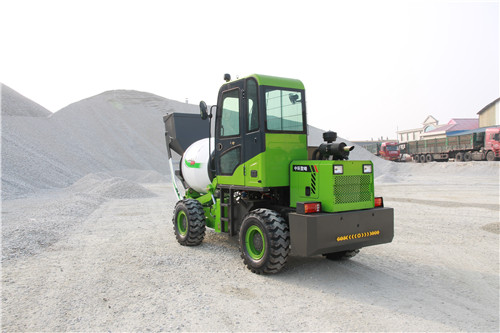

中科聚峰搅拌车
  搅拌机使用除了发动机,底盘部件,如维护,也必须做好准备,在混凝土搅拌罐的口清洁,在每一次具体的交付,及时清洗搅拌罐的料斗,粘附现象,这可以有效地减少混凝土的强度可以减少车辆维护、交错的生产高峰和及时进料孔进入料斗,并且出料槽采用局部补焊,配上槽缝余量,以减少设备在加工过程中前后漏浆造成的漏浆现象,在保证设备完完率的基础上限度的保证设备的清洁度。
  In addition to the engine and chassis components, such as maintenance, the mixer must also be prepared to clean the opening of the concrete mixing tank. At each specific delivery, the hopper of the mixing tank shall be cleaned in time, and adhesion phenomenon can be effectively reduced. This can effectively reduce the strength of concrete, reduce vehicle maintenance, staggered production peak and timely feed hole into the hopper, In addition, the discharge chute adopts local repair welding and slot allowance, so as to reduce the leakage caused by slurry leakage before and after the processing of the equipment, and ensure the cleanliness of the equipment to the maximum extent on the basis of ensuring the completion rate of the equipment.
  搅拌车的维护保养是搅拌车使用过程中必不可少的环节。我们应该尽我们的努力来涵盖所有方面的维修搅拌车。
  The maintenance of the mixer is an essential part in the use of the mixer. We should do our best to cover all aspects of the maintenance of the mixer.
